PS Series

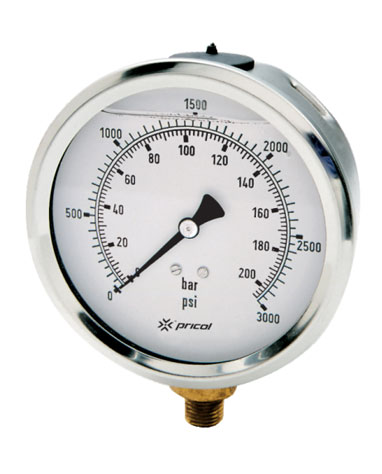

Ammonia GaugesPS001


  • For measurement of ammonia based systems
  • High accuracy / Reliable
  • Low service life
  • Product information
  • Product Range
Application Widely used in refrigeration industries
Dial size 2-1/2”, 4”
Case SS316 / SS304
Ring SS316 / SS304
window Polycarbonate
Dial Black figures on white background. Materials - Customizable
Pointer Friction adjustable knife edge type. Materials & Colors - Customizable
Bourdon tube SS316
Socket SS316
Movement SS304
Connections 1/4'', 3/8", 1/2" BSP or NPT
Ranges -30x150 psi, -30x300 psi, -1x9 bar to -1x25 bar
-760mmhg x 16 kg/cm 2 , 760mmhg x 25 kg/cm 2
Over Pressure Limit 30% of FSV
Accuracy ± 1 % to ± 3% (± 0.5% on order)
Fill Plug Ventable
Protection IP52
Liquid Fill Glycerin or Dry
(psi) (bar)
-30x150 psi -1x9 bar
-30x300 psi -1x12 bar
-1x15 bar
-1x25 bar
760mmhg x 16 kg/cm2
760mmhg x 25 kg/cm2
