ANTIPULSATION GAUGES

PPA Series

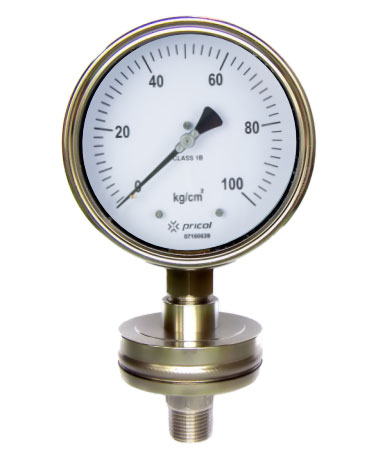

Anti-Pulsation GaugesPPA001


Features

  • This gauges reduces wear and tear of parts due to pulsation from sudden pressure surges or pressure drops
  • It also makes the pointer reading steady and considerably increases life of the gauge
  • Optimized quality
  • Accurate measurement
  • Request a Quote
  • Product information
  • Product Range
Application For measuring points with high dynamic pressure loads or vibrations
  • Shipbuilding
  • Hydrualics
Dial size 4”, 6”
Case SS304 / SS316
Ring SS304 / SS316
window Glass / Toughened Glass / Shatterproof glass
Dial Black figures on white background. Materials - Customizable
Pointer Friction adjustable knife edge type. Materials & Colors - Customizable
Bourdon tube SS316 / Brass
Diaphragm Ss316 OR SS316 Teflon Coated / Hastealloy C
Socket SS/Brass
Movement SS/Brass
Connections G 1/2 B (male),22mm flats
Ranges 0 to 400 bar or kg / cm 2
Accuracy ± 1.5% FSD
Fill Plug Ventable
Protection IP65
Liquid Fill Glycerin, Silicone Oil (Includes throttle plug)
Bar psi
0 - 6 0 - 80
0 - 16 0 - 230
0 - 100 0 - 1450
0 - 160 0 - 2320
0 - 400 0 - 5800
