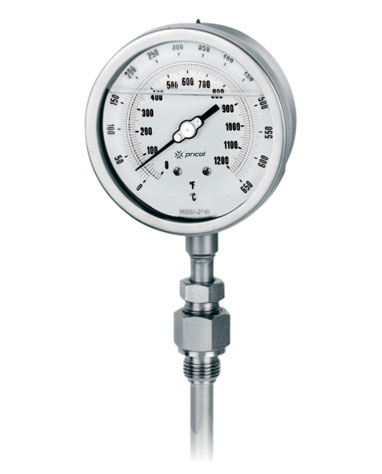

ANTIVIBRATION THERMOMETER

PTA Series

Antivibration ThermometersPTA001


Features

  • Fast response
  • Full SS construction
  • Silicone oil filled / Glycerine
  • Fitted with anti vibration spring
  • Product information
  • Product Range
Application Ideal for applications with vibration like Diesel engines / Compressors / Marine applications
Dial size 4”, 6”
Case 304SS, Mild Black Steel, Brass, Aluminium, ABS
Ring 304SS, Mild Black Steel, Brass, Aluminium, ABS
window Shatterproof glass
Dial Black figures on white background. Materials - Customizable
Pointer Friction adjustable knife edge type. Materials & Colors - Customizable
Bourdon tube SS / Brass / Copper Alloy / Beryllium Copper / Chrome - moly / Monel / Phosphor Bronze
Socket SS / Brass / Copper Alloy
Movement SS / Brass / Copper Alloy
Connections 1/2” BSP or NPT
Ranges 0 to 650 deg c
Accuracy ± 1% of FSV
Fill Plug Ventable
Protection IP 65
Liquid Fill Glycerin, Silicone Oil (Includes throttle plug)
Stem length 63mm,100mm,150mm, 200mm
in ° C Resoultion
-30...+170 1
-20...+180 1
-10...+150 0.1
0...+100 0.1
0...+600 1
