BI-METAL THERMOMETER

PT Series

Bi Metal ThermometersPT001



Features

  • Rugged construction

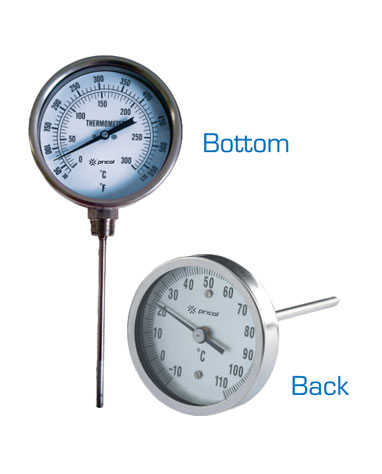

  • Bottom / Back / All angle type
  • High repeatability
  • Product information
  • Product Range
Application Widely used for Food, Pharma, Ovens HVAC applications & Process Industries
Dial size 2-1/2”, 4”, 6” & 8”
Case SS304 Bayonet Type, Die Cast Aluminium
Ring SS304 Bayonet Type, Die Cast Aluminium
window Plain Glass / Toughened Glass
Dial Black figures on white background. Materials - Customizable
Pointer MS, Aluminium - '0' Adjustable
Bourdon tube SS316
Sensing Element Spiral Wound Bi-metal Strip
Movement SS304 / Brass
Bulb & Stem SS316 / SS304 / Brass
Std Stem Dia 10mm (6mm & 9mm on request)
Std Stem Length 250mm (other size on request)
Ranges -50 to 400 deg c
Accuracy ± 2 % of Span
Fill Plug Ventable
Liquid Fill Glycerin, Silicone Oil (Includes throttle plug)
Connection 1/2" BSP or NPT
in ° C Resoultion
-50 ... +50 0.1
-10...+150 0.1
0...+60 0.1
0...+200 1
0...+600 1
