COMPACT SEALED DIAPHRAGM GAUGES

PPD Series

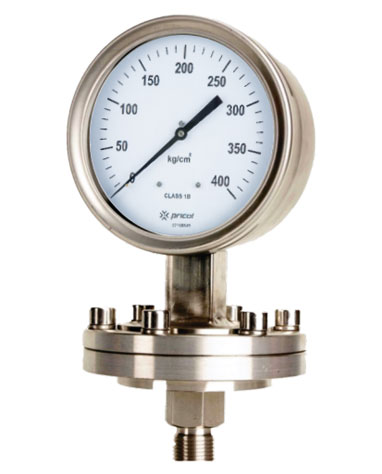

Compact Sealed Diaphragm GaugesPPD001


Features

  • Safe use
  • Durable
  • Superior performance
  • Optimized quality
  • Compact and sleek design
  • Request a Quote
  • Product information
  • Product Range
Application Ideal for hygienic applications as there is no chance of leakage or contact of media with ring or gasket
Dial size 2'', 2½", 4", 6''
Case SS304
Ring SS304
window Glass / Toughened Glass / Shatterproof Glass
Dial Black figures on white background. Materials - Customizable
Pointer Friction adjustable knife edge type. Materials & Colors - Customizable
Bourdon tube SS316
Diaphragm SS316 - Top chamber is welded, No O-Rings.
Socket SS316
Movement SS304
Connections 3/8”, 1/2” BSP / NPT
Ranges 0 to 400 bar or kg/cm 2
Accuracy ±1.5% FSD
Fill Plug Ventable
Protection IP65
Liquid Fill Glycerin, Silicone Oil (Includes throttle plug)
bar or kg/cm2 psi
0 - 16 0 - 230
0 - 60 0 - 870
0 - 100 0 - 1450
0 - 400 0 - 5800
