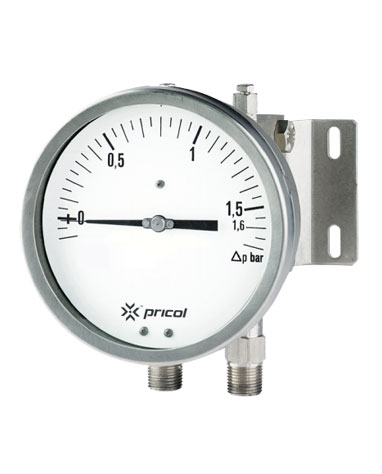

DIFFERENTIAL GAUGES FOR LOW RANGE

PPDf Series

Differential Gauges for low rangePPDf001



Features

  • Brass or stainless steel wetted parts
  • Both conventional and balanced scale available
  • Compact design
  • Lens is constructed of clear Polycarbonate / Glass
  • Optimized quality
  • Accurate measurement
  • Request a Quote
  • Product information
  • Product Range
Application Widely used in Process Industries, Paint Booth, Blower Pressure, etc.
Dial size 4", 4½", 6"
Case SS304, Weatherproof Aluminium
Ring SS304, Weatherproof Aluminium
window Acrylic / Glass / Shatterproof glass
Dial Black figures on white background. Materials - Customizable
Pointer With facility of external '0' adjustment
Sensing Element Diaphragm: SS316 for ranges 100 mmwc to 6000 mmwc Diaphragm: Alloy steel for ranges 0.6 kg/cm 2 to 25 bar or kg/cm 2
Top / Bottom Chamber SS304 / SS316
Movement SS304 / Brass
Connections 1/4'' NPT (F) for L.P & H.P
Ranges 100 mmwc to 6000 mmwc / 0.6 kg/cm2 to 25 kg/cm2
Accuracy ± 1.5% FSD
Fill Plug Ventable
Protection IP55
Bar psi
0 - 0.6 0 - 9
0 - 1 0 - 15
0 - 2.5 0 - 30
0 - 4 0 - 58
0 - 7 0 - 101
