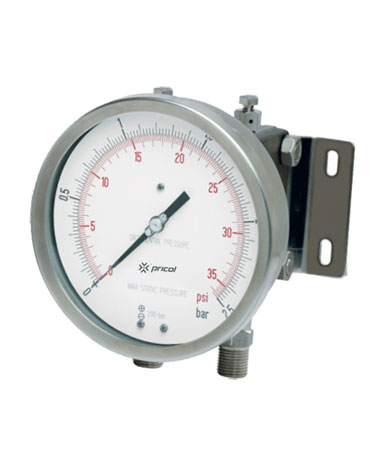

PPDf Series

Differential GaugesPPDf002


Features

  • Brass or stainless steel wetted parts
  • Both conventional and balanced scale available
  • Compact design
  • Lens is constructed of clear Polycarbonate / Glass
  • Optimized quality
  • Accurate measurement
  • Request a Quote
  • Product information
  • Product Range
Application Widely used in process industries
Dial size 4”, 6”
Case 304SS, Mild Black Steel, Brass, Aluminium, ABS
Ring 304SS, Mild Black Steel, Brass, Aluminium, ABS
window Polycarbonate / Glass / Shatterproof glass
Dial Black figures on white background. Materials - Customizable
Pointer Friction adjustable knife edge type. Materials & Colors - Customizable
Bourdon tube SS / Brass / Copper Alloy / Beryllium Copper / Chrome - moly / Monel / Phosphor Bronze
Socket SS / Brass / Copper Alloy
Movement SS / Brass / Copper Alloy
Connections 1/4” NPT standardts
Ranges 0 to 70 bar
Accuracy ± 1.6% FSV
Fill Plug Ventable
Protection IP55
Liquid Fill Glycerin, Silicone Oil (Includes throttle plug)
Bar psi
0 - 6 0 - 87
0 - 10 0 - 145
0 - 40 0 - 580
0 - 60 0 - 870
0 - 70 0 - 1015
