ELECTRIC CONTACT GAUGES

PPE Series

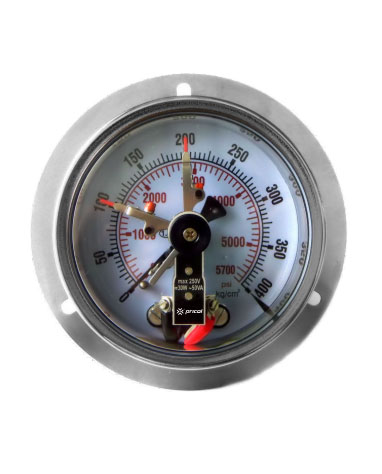

Electric Contact GaugesPPE001

Features

  • Compact design
  • Protection against mechanical wear
  • Light weight
  • Request a Quote
  • Product information
  • Product Range
APPLICATION Ideal to provide electrical ON/OFF signals at set pressure. Used in Pharmaceutical, Oil & Gas, Refineries, Paper & Pulp, Sugar, Food & Beverage
DIAL SIZE 4”, 6”
CASE SS304
RING Aluminium
WINDOW Acrylic / Glass / Safety glass
DIAL Black figures on white background. Materials - Customizable
POINTER Friction adjustable knife edge type. Materials & Colors - Customizable
BOURDON TUBE SS316
SOCKET SS316
MOVEMENT SS304
CONNECTIONS 3/8”, 1/2” BSP or NPT
CONTACTS 1NO + 1NC - Standard (with Palladium Tip)
Others - 1NO, 1NC, 2NO, 2NC, 1NC + 1NO, 2NO + 2NC
CONTACT RATING 230 VAC / 380 VAC, 100mA max
RANGES 0 to 4 upto 1000 bar or Kg/cm 2
ACCURACY ±1% FSD
PROTECTION IP65
BAR PSI
0 - 10 0 - 145
0 - 25 0 - 360
0 - 60 0 - 870
0 - 160 0 - 2320
0 - 250 0 - 3620
0 - 400 0 - 5800
0 - 600 0 - 8700
0 - 1000 0 - 14500
