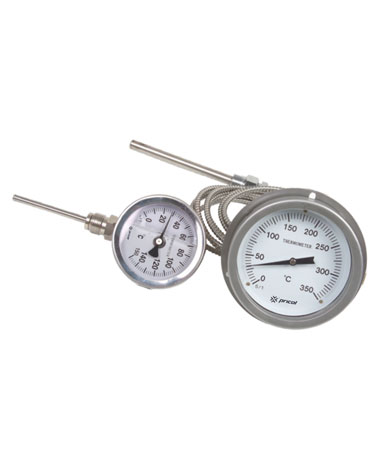

GAS-FILLED THERMOMETER

PT Series

Gas Filled ThermometersPT002

Features

  • Use of inert gas
  • Suitable for Sanitary application
  • All SS construction
  • Rigid stem or capillary type
  • Non-polluting, environmental friendly
  • High Reliability
  • Product information
  • Product Range
Application Widely used for temperature measurement in process industry, Marine oil / Fluidized part and machinery
Dial size 2-1/2”, 4”, 6”, 8” & 10”
Case SS304, Die-cast Aluminium
Ring SS304, Die-cast Aluminium
window Toughened Glass
Dial Black figures on white background. Materials - Customizable
Pointer '0' Adjustment Type, Materials & Colors - Customizable
Bourdon tube SS316
Movement SS304 / Brass
Connections 3/8'', 1/2", 3/4" BSP or NPT
Ranges -50 deg to 600 deg C
Accuracy ± 1% of Span
Fill Plug Ventable
Liquid Fill Glycerin, Silicone Oil (Includes throttle plug)
Bulb & Stem SS316 / SS304
Std Stem length 250mm (Max upto 2000mm on request)
Std Stem dia 10mm - other size on request
Capillary type Material : SS316
Armour : Copper / SS / PVC Sheath
Std Length : 3 meters ( Max upto 16 meters on request)
in ° C Resoultion
-30...+170 1
-20...+180 1
-10...+150 0.1
0...+100 0.1
0...+600 1
