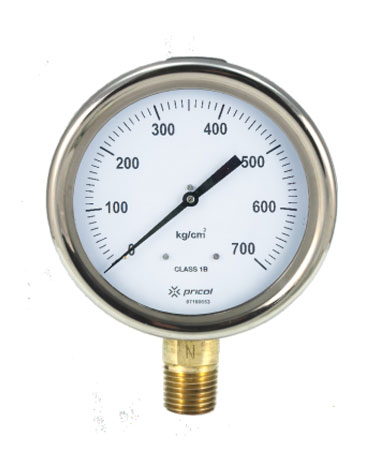

Liquid Filled Gauges

PPF Series

Liquid Filled GaugesPPF001

Features

  • Robust stainless steel housing
  • Can be used in cases of heavy vibrations and high, dynamic pressure loads
  • Longer service life
  • Request a Quote
  • Product information
  • Product Range
Application Widely used in non-corrosive gas/liquid, Hydraulic and pneumatic equipments
Dial size 2'', 2½", 4", 6", 8", 10''
Case SS304
Ring SS304
window Glass / Toughened Glass / Shatterproof Glass
Dial Black figures on white background. Materials - Customizable
Pointer Friction adjustable knife edge type. Materials & Colors - Customizable
Bourdon tube SS316/Brass
Socket SS304 / Brass
Movement SS/Brass/Copper Alloy
Connections 1/4”, 3/8”, 1/2” BSP / NPT
Ranges 0 to 1000bar or Kg/cm 2 (Vacuum & Compound)
Accuracy ±1% FSD
Fill Plug Ventable
Protection IP65
Liquid Fill Glycerin, Silicone oil (Includes throttle plug)
(bar or Kg/cm2) (psi)
0 - 60 0 - 870
0 - 400 0 - 5800
0 - 600 0 - 8700
0 - 700 0 - 10100
0 - 1000 0 - 14500
