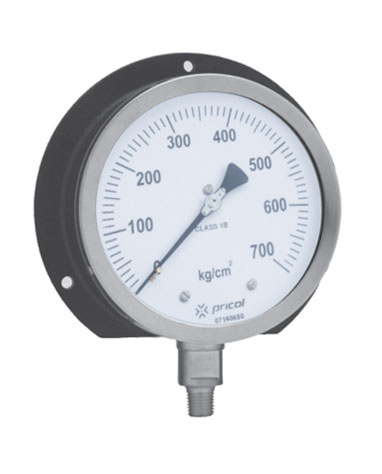

PP Series

Standard GaugesPP003

Features

  • Compact design
  • Long service life
  • Minimum Maintenance
  • Request a Quote
  • Product information
  • Product Range
APPLICATION These are general purpose gauges used on Motors, Pumps, Hydraulics, Pneumatic equipments
DIAL SIZE 1½'' to 6''
CASE MS Case, Aluminium
RING MS, Aluminium
WINDOW Glass / Shatterproof glass
DIAL Black figures on white background. Materials - Customizable
POINTER Friction adjustable knife edge type. Materials & Colors - Customizable
BOURDON TUBE SS / Brass / Phosphor Bronze
SOCKET SS / Brass
MOVEMENT Brass
CONNECTIONS 1/8”, 1/4”, 3/8”, 1/2” BSP or NPT
RANGES 0 to 700 bar or kg/cm 2
ACCURACY ± 1% FSD
FILL PLUG Ventable
PROTECTION IP55
( BAR OR KG/CM2) (PSI)
0 - 100 0 - 1450
0 - 200 0 - 2900
0 - 400 0 - 5800
0 - 600 0 - 8700
0 - 700 0 - 10000
