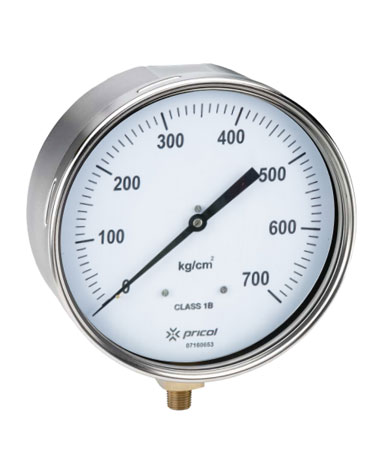

PTG Series

Test GaugesPTG001


Features

  • Highly accurate
  • Knife-edge pointer
  • Protective carrying and storage case available
  • 5 years warranty
  • Product information
  • Product Range
Application Ideal for applications where higher accuracy is required --> Calibration,Lab Testing etc.
Dial size 6”, 8”, 10”
Case SS304, Weatherproof Aluminium
Ring SS304, Weatherproof Aluminium
window Toughened Glass / Shatterproof glass
Dial Black figures on white background. Materials - Customizable
Pointer Friction adjustable knife edge type. Materials & Colors - Customizable
Bourdon tube SS316 / Beryllium Copper
Socket SS316 / Brass
Movement SS304 / High Precision Brass
Connections 3/8'', 1/2" - BSP or NPT (M)
Ranges 0 to 1000 bar or kg/cm 2
Accuracy ± 0.25 % ± 0.5 % FSD
Fill Plug Ventable
Protection IP65
Bar psi
0 - 100 0 - 1450
0 - 250 0 - 3620
0 - 600 0 - 8700
0 - 800 0 - 11600
0 - 1000 0 - 14500
