Category: Automotive Division

Automobile external & internal fan alternators, windshield washer systems, Oil Pressure Switch

Wind Shield Washer Kits

Wind shield washer system with motor pumps produced to deliver a consistent water jet with a flow rate of 1000cc/minute and injection pressure more than 1.2 kg/sq.cm. Jet nozzles, HDPE and PP tanks have been designed for use under a wide range of environmental conditions throughout the world, including excessively cold and hot climates. We manufacture this at Satara plant for catering to Indian and overseas OEMs like Tata Motors, Maruti Suzuki, Mahindra & Mahindra, Kubota Corporation- Japan,Force Motors etc.
Specifications:
1.Wind Shield Washer Systems – 12v / 1.2Ltr
2.Wind Shield Washer Systems – 12v / 2.2Ltr
3.Wind Shield Washer Systems – 12v / 3.5Ltr
4.Wind Shield Washer Systems – 24v / 3Ltr
5.Wind Shield Washer Systems – 24v / 3.5Ltr

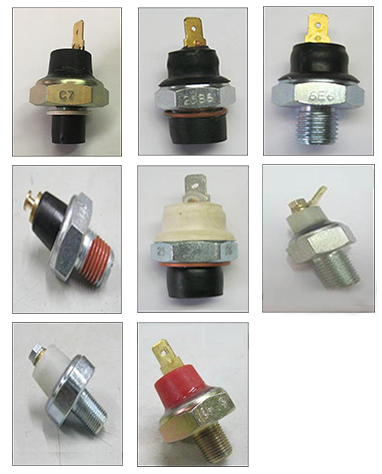

Oil pressure switch

Oil pressure switches are manufactured at the Mumbai plant. Oil Pressure Switches are supplied to
almost all Indian OEMs and we cater to Passenger Cars, MUV, HCV, LCV, Tractor and Engine industry.
Today are a single source supplier of Oil pressure switch to most OEM and have a dominant presence in
Indian automotive industry.

Hour RPM Meters; Hour Meter



  • P30 – 9387
  • P20 – 5918
  • P20 – 5552
  • P20 – 5501
  • P20 – 5491

Hour Meter

Diameter (mm) Range (rpm) Count (Maximum) Voltage Ref. Part No. Movement Dial Illumination Bazel Features
52 NA 99999.9 12 V DC
24 V DC		 P30 – 9387 – B Not Applicable Black / White LED Chromium plated
Black painted		 Mechanical type display.
52 NA 99999.9 12 V DC
24 V DC		 P30 – 5918 – B Not Applicable Black LED Chromium plated
White painted
Black painted		 LCD display with backlight.
Microcontroller based design.

Hour rpm Meter

Diameter (mm) Range (rpm) Count (Maximum) Voltage Ref. Part No. Movement Dial Illumination Bazel Features
85 0 to 3000 99999.9 12 V DC
24 V DC		 P20 – 5501 – E Air core Black LED Chromium plated
Black painted		 Suitable for all vehicles, machines. LCD display hour counter with backlight.
85 0 to 3000 99999.9 12 V DC
24 V DC		 P20 – 5552 – C Air core Black / White Lamp Chromium plated Micro controller based design. Least count 0.1 hr Display capacity is 99999.9 hr
100 0 to 3500 99999.9 12 V DC
24 V DC		 P20 – 5491 – C Stepper Motor Black / White LED Chromium plated
Black painted		 Suitable for all vehicles, machines. LCD display hour counter with backlight.

Hour RPM meter counts the hours, based on alternator signals, the signal is mostly taken from ‘W-Point’ and indicates the corresponding Engine rpm. Incorporated hour meter shows true engine hours. Suitable for most petrol and diesel engines. Very accurate and stable indication due to micro controller based aircore movement. LCD hour counter and back light provided for clear visibility at night condition. Hour counter starts counting when the speed of the engine reached above idle rpm.

Hour counter counts and displays the time of the vehicle or machine has been used. Suitable for all machines and all types of vehicles.Highly accurate and stable hour counting with microcontroller based design.

Marine Meters



  • P30 – 9392
  • P30 – 9395
  • P30 – 9398
  • P30 – 9539
  • P30 – 6106
  • P30 – 7295
  • P30 – 9393
Products Diameter (mm) Range Voltage Ref. Part No. Movement Dial Illumination Bazel
Voltmeter 52 8 to 16 V 12 V DC
24 V DC		 P30 – 9398 – B Air core White / Black Lamp Chromium plated
White painted
Black painted
Pressure Guage 52 8 to 5 bar 12 V DC
24 V DC		 P30 – 9396 – B Air core White / Black Lamp Chromium plated
White painted
Black painted
Ammeter 52 -30 to +30 A 12 V DC
24 V DC		 P30 – 9392 – A Air core White / Black Lamp Chromium plated
White painted
Black painted
Temperature Guage 52 40 °C to 120 °C 12 V DC
24 V DC		 P30 – 9539 – A Air core White / Black Lamp Chromium plated
White painted
Black painted
Speedometer (Mechanical) 52 0 to 60 mph 12 V DC
24 V DC		 P30 – 7295 – B Bourdon Assembly White / Black Lamp Chromium plated
White painted
Black painted
Speedometer (Mechanical) 85 0 to 80 mph 12 V DC
24 V DC		 P30 – 6106 – A Bourdon Assembly White / Black Lamp Chromium plated
White painted
Black painted
Hour RPM Meter 85 0 to 4000 mph 12 V DC P30 – 9393 – C Air core White / Black Lamp Chromium plated
White painted
Black painted

Pricol marine products offers an elegant design of gauges proven successfully for accuracy and performance in a broad range of applications. Modern electronic design for rpm meter with digital hour counting, indicates the engine running rpm and displays the hours of the vehicle used. Plug and play PCBs are embedded to make more flexible design. Possible installation by direct connection to alternator (W) or pickup sensor.

All gauges are provided with backlight and suitable for all marine applications. Separate gauges for fuel, pressure and temperature indication and designed with world class technology for accuracy and performance. Voltmeter and Ammeter monitors charge and battery condition with precision. Hour meter starts counting when the engine speed is above idle rpm. User friendly dashboard design can be created with these individual gauges.

Gauges

  • P20 – 1245
  • P20 – 9398
  • P20 – 5466
  • P20 – 5574
  • P20 – 9630
  • P20 – 9625
Products Diameter (mm) Range Voltage Ref. Part No. Movement Dial Illumination Bazel
Ammeter 52 -30 to +30 A 12 V DC
24 V DC		 P30 – 1245 – D Air core Black / White Lamp Chromium plated
Volt Meter 52 8 to 16 V DC 12 V DC
24 V DC		 P30 – 9398 – B Air core Black / White Lamp Chromium plated
Pressure Gauges 52 0 to 10 bar 12 V DC
24 V DC		 P30 – 5574 – A Air core Black / White Lamp Chromium plated
Temperature Gauges 52 60 to 110 °C 12 V DC
24 V DC		 P20 – 5466 – A Air core Black / White Lamp Chromium plated
Pressure Gauges (Mechanical) 52 10 to 150 psi 12 V DC
24 V DC		 P30 – 9630 – A Bourdon Assembly Black / White Lamp Chromium plated
Temperature Gauges (Mechanical) 52 120 to 260 °F 12 V DC
24 V DC		 P30 – 9625 – A Bourdon Assembly Black / White Lamp Chromium plated

The Electrical gauges suitable for all vehicles and machines. Built in damping provided for smooth pointer movement. Easy installation with supplied bracket. Fluorescent pointer for perfect readings in any lighting condition. Gauges are genuine high quality pricol instruments for accuracy and performance.

Temperature, Fuel and Pressure gauges are genuine high quality instruments for accuracy and performance. Electrical gauges are calibrated with air core movement while bourdon assembly is used for mechanical temperature and presure gauges suitable for most vehicles and machines provided with backlight. Suitable for use with most petrol, diesel fuel and LPG systems.

Appropriate senders or switches interface with the gauges for indication input. Voltmeter and Ammeter monitors charge and battery condition with precision. Backlight is provided to all gauges which gives better illumination.
