PPD Series

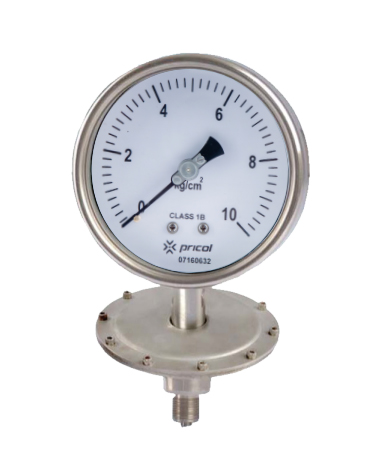

Low Pressure Diaphragm Gauge / Schaffer GaugePPD001

Features

  • Compact design
  • Optimized quality
  • Accurate measurement
  • Accuracy ± 1.5% of FSD
  • Request a Quote
  • Product information
  • Product Range
Application Widely used to measure low pressure ranges or applications Suitable for Pharmaceutical, Chemical, Petrochemical, Refineries & etc.
Dial size 4'', 6''
Case SS304 / Weatherproof Aluminium
Ring SS304 / Weatherproof Aluminium
window Toughened Glass / Shatterproof glass
Dial Black figures on white background. Materials - Customizable
Pointer '0' Adjustable / Micrometer, Materials & Colors - Customizable
Diaphragm SS316
Socket SS316
Movement SS304 / Brass
Connections 3/8" or 1/2 BSP or NPTM bottom
Ranges 100 mmwc to 8000 mmwc, Compound -100 mmwc to +3000 mmwc
Schaffer Type 1 to 25 kg / cm 2
Top Chamber SS304 / Weatherproof Aluminium
Bottom Chamber SS316
Accuracy ±1.5% FSD
Fill Plug Ventable
Protection IP54
(mmwc) (mbar) (KG/CM2OR BAR )
0 - 400 0 - 40 0 - 1
0 - 1000 0 - 100 0 - 4
0 - 2000 0 - 200 0 - 6
0 - 4000 0 - 400 0 - 10
0 - 6000 0 - 600 0 - 25
